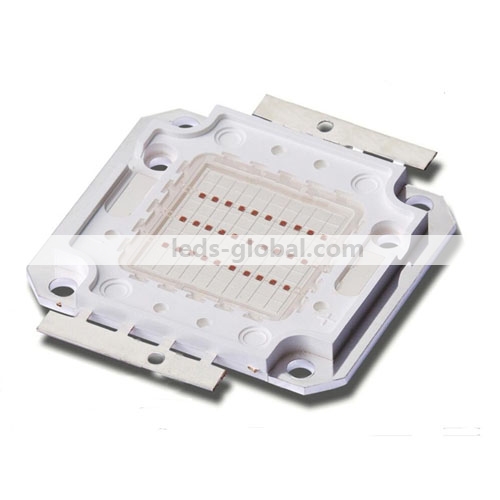

IR 30W 940nm Infrared High Power LED

item#: G-30P42GR140A1-IR

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

29.00

Start from: 2 Unit(s)
This item is:

Please Choose:

Shape Type

Qty.Range(unit)	Price(per unit)	Discount
5-9	0	2%
10-19	0	3%
20-49	0	4%
50-99	0	6%
100-149	0	8%
150-199	0	10%
200--max	0	12%
* Discounts may vary based on options above
Large Order:

0+ Shipping Cost

Quantity:

Product Details

The available IR wavelengths from 700nm, 710nm, 720nm, 730nm, 740nm, 750nm, 760nm, 780nm, 790nm, 800nm, 810nm, 830nm, 850nm, 860nm, 880nm, 890nm, 910nm, 940nm, 960nm, 970nm, 980nm, 1050nm. We offer technology and Custom LED solutions support, If you have any special requirements out of store, please contact us.

Package Dimensions(mm):

30W IR 940nm led Square substrate dimensions

Square Substrate

30W IR 940nm led Oval dimensions

Oval Substrate

Key Features:

• 99.99% gold wire bonding, 1.2mil

• Red copper Subtrate

• Substrate Type: Square and Oval

• Chips: 30pcs 42mil Chips

• Chips Connection: 10 in series, 3 in parallel (The chips layout is customizable)

• Applications: mainly used for surveilance system, CCTV camera, night and machine vistion, medical and other professional equipment

• Extra HEATSINK is required for the LEDs.

Absolute Maximum Ratings at Ta=25℃

Item	Symbol	Absolute Maximum Rating	Unit
DC Forward Current	I_F	1050	mA
Peak Forward Current	I_F	1200	mA
Reverse Voltage	V_R	5	V
Power Dissipation	P_D	30	W
Electrostatic discharge	ESD	±4500	V
Operation Temperature	Topr	-40~+80	℃
Storage Temperature	Tstg	-40~+100	℃
Lead Soldering Temperature	Tsol	Max.260℃ for 6 seconds Max.
Life test	----	1000 H Luminous intensity weaken< 5%(1050mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (1050mA,Ta=65℃);

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	V_F	13.0	---	15.0	V	I_f=1050mA
Reverse Current	I_R	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	I_F=1050mA
Radiant Power	Po	1500	---	2500	mW	I_F=1050mA
Peak Wavelength	λp	935	940	945	nm	I_F=1050mA
