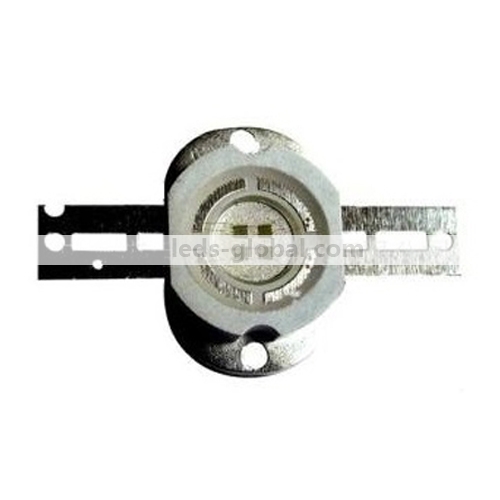

5W Cool Blue 470nm High Power LED

item#: G-5P45V140A1-CB2

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

4.00

Start from: 10 Unit(s)
This item is:

Please Choose:

Shape Type

Qty.Range(unit)	Price(per unit)	Discount
26-49	0	4%
50-99	0	10%
100-199	0	15%
200-299	0	20%
300-499	0	25%
500--max	0	33%
* Discounts may vary based on options above
Large Order:

0+ Shipping Cost

Quantity:

Product Details

Package Dimension(mm):

5W Cool Blue 470nm led Square substrate package dimension

Square Substrate

5W Cool Blue 470nm led Round substrate package dimension

Round Substrate

Key Features:

• 99.99% gold wire bonding, 1.2mil

• Red copper Subtrate

• Chips: 4pcs* 45mil Epileds Chips (2 in series, 2 in parallel)

• Substrate Type: Round and Square are available

• Applications: Agricultural lighting, horicultural lighting and other professional or commercial lighting.

• Extra HEATSINK is required for the LEDs.

Absolute Maximum Ratings at Ta=25℃

Item	Symbol	Absolute Maximum Rating	Unit
DC Forward Current	I_F	700	mA
Peak Forward Current	I_F	1000	mA
Reverse Voltage	V_R	5	V
Power Dissipation	P_D	5000	mW
Electrostatic discharge	ESD	±4500	V
Operation Temperature	Topr	-40~+80	℃
Storage Temperature	Tstg	-40~+100	℃
Lead Soldering Temperature	Tsol	Max.260℃ for 6 seconds Max.
Life test	----	1000 H Luminous intensity weaken< 5%(700mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (700mA,Ta=65℃);

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	V_F	6.0	---	7.0	V	I_f=700mA
Reverse Current	I_R	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	I_F=700mA
Luminous Flux	Φ	70	---	80	lm	I_F=700mA
Peak Wavelength	λp	465	470	475	nm	I_F=700mA
