  • Wholesale 10W Ultra Violet 405nm High Power LED
  • images/v/201803/b/15218656941.jpg
  • images/v/201803/b/15218656940.jpg

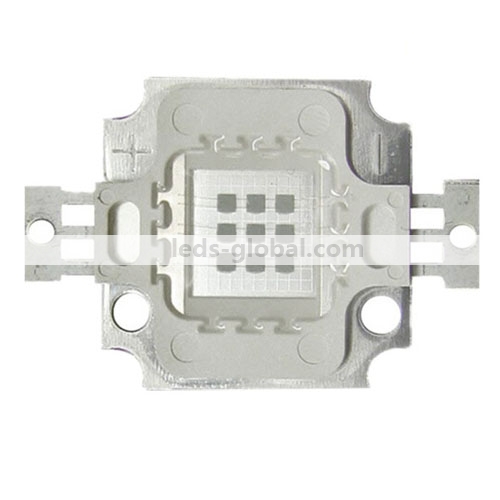

10W Ultra Violet 405nm High Power LED

  • item#: G-10P45EP140UV-405
  • Retail price: 0

    • Wholesale Price: 8.00

  • Start from: 5 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    20-49 0 11.11%
    50-99 0 16.66%
    100-499 0 22.22%
    500--max 0 38.89%
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      • UV led is widely used in Health Care Equipment, Horiculture, Algea growing and Scientific Instruments. We can offer technology and Custom LED solutions support. If you have any special requirement, please contact us.

      Package Dimensions(mm):

      405nm UV LED 10W Square substrate dimension

      Square Substrate

      405nm UV LED 10W Round substrate dimension

      Round Substrate


      Key Features:


      • 99.99% gold wire bonding, 12mil

      • Red copper Subtrate

      • Chips: 9pcs*  45mil Epileds Chips

      • Connections: 3 in series, 3 in parallel

      • Applications: Agricultural lighting, Aquarium, horicultural lighting and other professional or commercial lighting.



      Absolute Maximum Ratings at Ta=25℃


      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      1050

      mA

      Peak Forward Current

      IF

      1200

      mA

      Reverse Voltage

               VR

      5

      V

      Power Dissipation

               PD

      10

      W

      Electrostatic discharge

               ESD

      ±4500

      V

      Operation Temperature

              Topr

      -40~+80

      ℃

      Storage Temperature

      Tstg

      -40~+100

      ℃

      Lead Soldering Temperature

      Tsol

      Max.260℃ for 6 seconds Max.

      Life test

      ----

      1000H  Luminous intensity weaken< 5%(1050mA,Ta=65℃);             50,000H Luminous intensity weaken < 20% (1050mA,Ta=65℃);





      Electrical Optical Characteristics at Ta=25℃



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      9.0

      ---

      10.0

      V

      IF=1050mA

      Reverse Current

      IR

      ---

      ---

      50

        uA

                    VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

           Deg.

      IF=1050mA

      Radiant Power

      Po

      3000

      ---

      4000

      mW

      IF=1050mA

      Peak Wavelength

      λp

      400

      405

      410

      nm

      IF=1050mA
