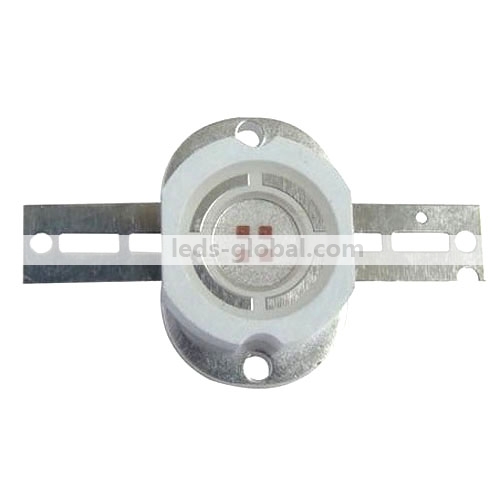

IR 5W 940nm Infrared High Power LED

item#: G-5P42GR140A1-IR2

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

4.00

Start from: 10 Unit(s)
This item is:

Please Choose:

Shape Type

Qty.Range(unit)	Price(per unit)	Discount
* Discounts may vary based on options above
Large Order:

0+ Shipping Cost

Quantity:

Product Details

The available IR wavelengths from 700nm, 710nm, 720nm, 730nm, 740nm, 750nm, 760nm, 780nm, 790nm, 800nm, 810nm, 830nm, 850nm, 860nm, 880nm, 890nm, 910nm, 940nm, 960nm, 970nm, 980nm, 1050nm. We offer technology and Custom LED solutions support, If you have any special requirements out of store, please contact us.

Package Dimension(mm):

5W IR 940nm led Square substrate package dimension

Square Substrate

5W IR 940nm led Round substrate package dimension

Round Substrate

Key Features:

• 99.99% gold wire bonding, 12mil

• Red copper Subtrate

• Substrate Type: Round and Square

• Chips: 4pcs 42mil Chips

• Chips Connection: 2 in series, 2 in parallel

• Applications: mainly used for surveilance system, CCTV camera, night and machine vistion, medical and other professional equipment

• Extra HEATSINK is required for the LEDs.

Absolute Maximum Ratings at Ta=25℃

Item	Symbol	Absolute Maximum Rating	Unit
DC Forward Current	I_F	700	mA
Peak Forward Current	I_F	1000	mA
Reverse Voltage	V_R	5	V
Power Dissipation	P_D	5000	mW
Electrostatic discharge	ESD	±4500	V
Operation Temperature	Topr	-40~+80	℃
Storage Temperature	Tstg	-40~+100	℃
LeadSoldering Temperature	Tsol	Max.260℃ for 6 seconds Max.
Life test	----	1000 H Luminous intensity weaken< 5%(700mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (700mA,Ta=65℃);

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	V_F	2.6	---	3.0	V	I_f=700mA
Reverse Current	I_R	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	I_F=700mA
Radiant Power	Po	100	---	150	mW	I_F=700mA
Peak Wavelength	λp	---	940	---	nm	I_F=700mA
