Package Dimension(mm):
Square Substrate
Round Substrate
Key Features:
• 99.99% gold wire bonding, 1.2mil
• Red copper Substrate

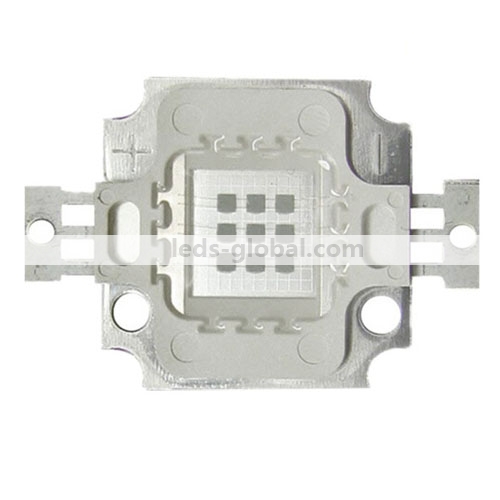

• Chips: 9pcs* 45mil Epileds Chips (3 in series, 3 in parallel)
• Substrate Type: Round and Square
• Applications: Agricultural lighting, horicultural lighting, chemical research and other professional lighting.
• Extra HEATSINK is required for the LEDs.
Absolute Maximum Ratings at Ta=25℃
Item |
Symbol |
Absolute Maximum Rating |
Unit |
DC Forward Current |
IF |
1050 |
mA |
Peak Forward Current |
IF |
1200 |
mA |
Reverse Voltage |
VR |
5 |
V |
Power Dissipation |
PD |
10 |
W |
Electrostatic discharge |
ESD |
±4500 |
V |
Operation Temperature |
Topr |
-40~+80 |
℃ |
Storage Temperature |
Tstg |
-40~+100 |
℃ |
Lead Soldering Temperature |
Tsol |
Max.260℃ for 6 seconds Max. |
|
Life test |
---- |
1000 H Luminous intensity weaken< 5%(1050mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (1050mA,Ta=65℃); |
Electrical Optical Characteristics at Ta=25℃
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Test Condition |
Forward Voltage |
VF |
8.0 |
--- |
9.0 |
V |
If=1050mA |
Reverse Current |
IR |
--- |
--- |
50 |
uA |
VR=5V |
50% Power Angle |
2θ1/2 |
--- |
140 |
--- |
Deg. |
IF=1050mA |
Luminous Flux |
Φ |
300 |
--- |
400 |
lm |
IF=1050mA |
Peak Wavelength |
λp |
545 |
550 |
555 |
nm |
IF=1050mA |
