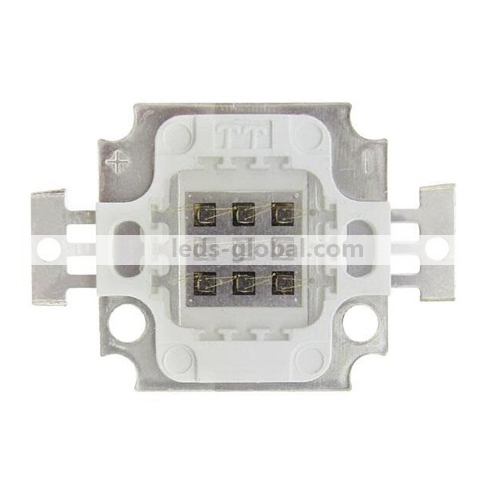

IR 10W 780nm High Power LED

  • item#: G-10P42G780R140A1-IR
  • Retail price: 0
  • Wholesale Price: 11.50

  • Start from: 5 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimension(mm):



      5W Far Red 730nm led Square substrate package dimension

      Square Substrate

      5W Far Red 730nm led Round substrate package dimension

      Round Substrate



      Key Features:


      • 99.99% gold wire bonding, 1.2mil

      • Red copper Subtrate

      • Substrate Type: Round and Square

      • Chips: 9pcs* 42mil Chips

      • Chips Connection: 3 in series, 3 in parallel

      • Applications: Agricultural and horicultural lighting

      • Extra HEATSINK is required for the LEDs.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      1050

      mA

      Peak Forward Current

      IF

      1200

      mA

      Reverse Voltage

                 VR

      5

      V

      Power Dissipation

                 PD

      10

      W

      Electrostatic discharge

                ESD

      ±4500

      V

      Operation Temperature

                Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      Lead Soldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000H Luminous intensity weaken< 5%(1050mA,Ta=65℃);        50,000H Luminous intensity weaken < 20% (1050mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

         5.5

      ---

      6.5

      V

      If=1050mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=1050mA

      Radiant Power

      Po

      600

      ---

      800

      mW

      IF=1050mA

      Peak Wavelength

      λp

      775

      780

      785

      nm

      IF=1050mA
