3W 410nm and 420nm dual chips hybrid High Power LED for Aquarium

item#: G-3P140AV-G

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

2.00

Start from: 20 Unit(s)
This item is:

Qty.Range(unit)	Price(per unit)	Discount
Large Order:

0+ Shipping Cost

Quantity:

Product Details

The complete wavelengths from 365nm to 1050nm could be combined and mixed to build your custom multichips. We have technology and service support for your custom design and project. If you have any questions, please contact us.

3W 410nm and 420nm dual chips High Power LED for Aquarium

Package Dimension(mm):

3W multichips LED package dimension

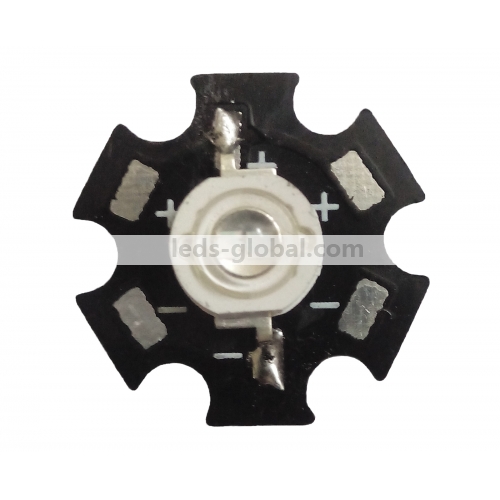

20mm Star LED PCB

Specifications:

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	VF	3.0	---	3.6	V	If=700mA
Reverse Current	IR	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	IF=700mA
Radiant Power	Po	500	---	600	mW	IF=700mA
Peak Wavelength	λp	405	410	415	nm	IF=700mA
Peak Wavelength	λp	415	420	425	nm	IF=700mA

Description:

Power: 3W hybrid

Type: Emitter on Star PCB /Only emitter

Wavelength: 410nm +-5nm & 420nm +-5nm

Beam Angle: 140deg.

Voltage: 3.0-3.6V Current: 700mA

Radiant Power: 500-600mW

Additional Heat-sink equipment is recommended when operation temperature is higher than 55 degrees
