  • Wholesale Yellow Green 540nm 30W High Power LED
  • images/v/201909/b/15689045541.jpg
  • images/v/201909/b/15689045540.jpg

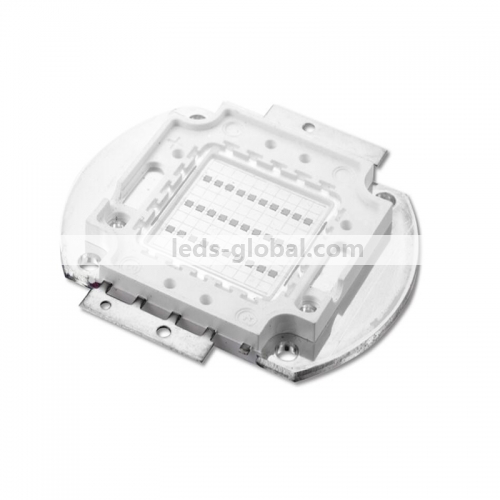

Yellow Green 540nm 30W High Power LED

  • item#: G-P30V140A1-G1
  • Retail price: 0
  • Wholesale Price: 28.00

  • Start from: 2 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimensions(mm):

      30W Green 540nm led Square substrate dimensions

      Square Substrate

      30W Green 540nm led Oval dimensions

      Oval Substrate



      Key Features:


      • 99.99% gold wire bonding, 1.2mil

      • Red copper Subtrate

      • Chips: 30pcs*  45mil Epileds Chips, 10 in series, 3 in parallel. (The chips layout is customizable)

      • Substrate Type: Oval and Square

      • Applications: Agricultural lighting, horicultural lighting, chemical research and other professional lighting.

      • Extra HEATSINK is required for the LEDs.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      1050

      mA

      Peak Forward Current

      IF

      1200

      mA

      Reverse Voltage

                    VR

      5

      V

      Power Dissipation

                    PD

      30

      W

      Electrostatic discharge

                  ESD

      ±4500

      V

      Operation Temperature

                 Topr

                                       -40~+80

                 ℃

      Storage Temperature

      Tstg

                                      -40~+100

                  ℃

        Lead Soldering Temperature

      Tsol

      Max.260℃ for 6 seconds Max.

            Life test

      ----

      1000 H  Luminous intensity weaken< 5%(1050mA,Ta=65℃);       50,000 H Luminous intensity weaken < 20% (1050mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      26.0

      ---

      30.0

      V

      If=1050mA

      Reverse Current

      IR

      ---

      ---

      50

        uA

                      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

           Deg.

      IF=1050mA

      Luminous Flux

      Φ

           1500

      ---

          2000

      lm

      IF=1050mA

      Peak Wavelength

      λp

      535

      540

      545

      nm

      IF=1050mA
