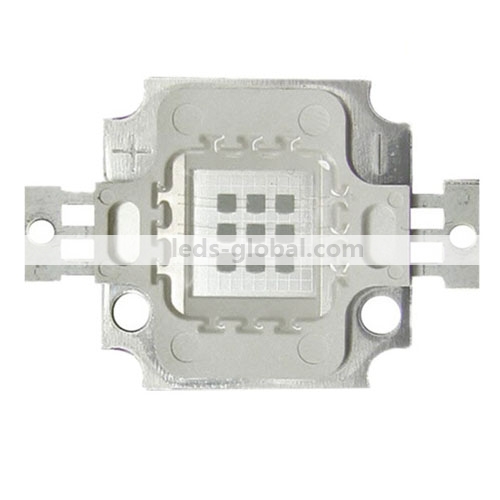

10W 430nm Actinic Violet High Power LED for Plant Grow light
Package Dimension(mm):
Square Substrate
Oval Substrate
Absolute Maximum Ratings at Ta=25℃
Item |
Symbol |
Absolute Maximum Rating |
Unit |
DC Forwar Curren dt |
IF |
1050 |
mA |
Peak Forward Current |
IF |
1200 |
mA |
Reverse Voltage |
VR |
5 |
V |
Power Dissipation |
PD |
10 |
W |
Electrostatic discharge |
ESD |
±4500 |
V |
Operation Temperature |
Topr |
-40~+80 |
℃ |
Storage Temperature |
Tstg |
-40~+100 |
℃ |
Lead Soldering Temperature |
Tsol |
Max.260℃ for 6 seconds Max. |
|
Life test |
---- |
1000H Luminous intensity weaken< 5%(1050mA,Ta=65℃); 50,000H Luminous intensity weaken < 20% (1050mA,Ta=65℃); |
Electrical Optical Characteristics at Ta=25℃
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Test Condition |
Forward Voltage |
VF |
9.0 |
--- |
10.0 |
V |
If=1050mA |
Reverse Current |
IR |
--- |
--- |
50 |
uA |
VR=5V |
50% Power Angle |
2θ1/2 |
--- |
140 |
--- |
Deg. |
IF=1050mA |
Radiant Power |
Po |
3500 |
--- |
4500 |
mW |
IF=1050mA |
Peak Wavelength |
λp |
425 |
430 |
435 |
nm |
IF=1050mA |
