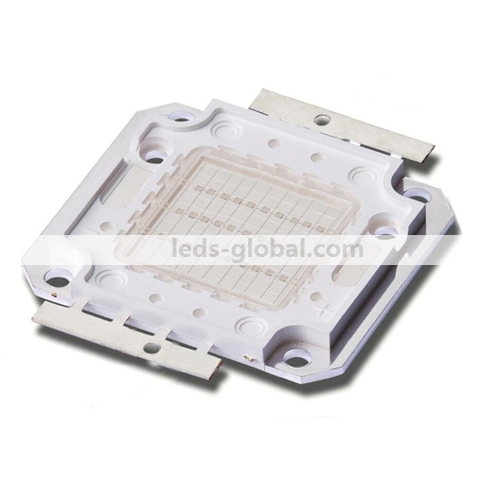

UV 415nm UV 30W High Power LED

  • item#: G-P30UC140A1-V
  • Retail price: 0
  • Wholesale Price: 25.00

  • Start from: 2 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    5-9 0 1.5%
    10-19 0 3%
    20-49 0 4%
    50-99 0 5%
    100-149 0 6%
    150-199 0 7%
    200--max 0 8.5%
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      • UV led is widely used in Health Care Equipment, Horiculture, Algea growing and Scientific Instruments. We can offer technology and Custom LED solutions support. If you have any special requirement, please contact us

      Package Dimensions(mm):

      415nm UV LED 20W Square Substrate package dimension

      Square Substrate

      415nm UV LED 20W Oval Substrate package dimension

      Oval Substrate



      Key Features:


      • 99.99% gold wire bonding, 12mil

      • Red copper Subtrate

      • Chips: 30pcs*  45mil Epileds Chips

      • Connections: 10 in series, 3 in parallel (Chips layout is customizable)

      • Applications: Agricultural lighting, Aquarium, horicultural lighting and other professional or commercial lighting.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      1050

      mA

      Peak Forward Current

      IF

      1200

      mA

      Reverse Voltage

      VR

      5

      V

      Power Dissipation

      PD

      30

      W

      Electrostatic discharge

      ESD

      ±4500

      V

      Operation Temperature

      Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      Lead Soldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000H Luminous intensity weaken< 5%(1050mA,Ta=65℃);        50,000H Luminous intensity weaken < 20% (1050mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      30

      ---

      36

      V

      If=1050mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=1050mA

      Radiant Power

      Po

      4000

      ---

      5000

      mW

      IF=1050mA

      Peak Wavelength

      λp

            ---

      410

      415

      nm

      IF=1050mA
