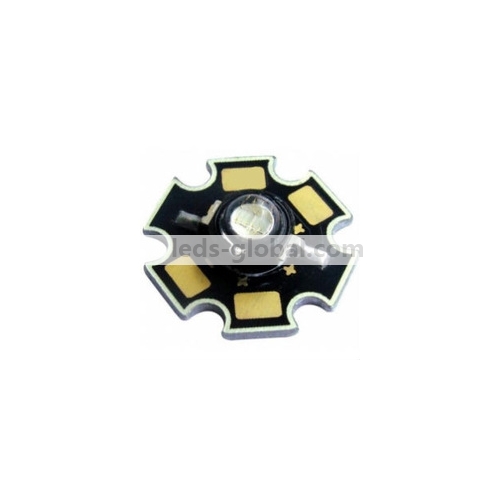

UV 415nm 3W High Power LED on Star PCB

item#: G-P3UC120B1-V

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

2.00

Start from: 20 Unit(s)
This item is:

Qty.Range(unit)	Price(per unit)	Discount
50-99	0	5%
100-199	0	10%
200-499	0	15%
500-999	0	20%
1000--max	0	30%
Large Order:

0+ Shipping Cost

Quantity:

Product Details

UV led is widely used in Health Care Equipment, Horiculture, Algea growing and Scientific Instruments. We can offer technology and Custom LED solutions support. If you have any special requirement, please contact us.

Package Dimension(mm):

415nm UV LED 3W package dimension

20mm Star LED PCB

Key Features:

• 99.99% gold wire bonding, 12mil

• Red copper Subtrate

• Epoxy resin lens

• Chips: 2pcs* 45mil Epileds Chips

• Applications: Agricultural lighting, Aquarium, horicultural lighting and other professional or commercial lighting.

• *** Additional Heat-sink equipment is recommended when operation temperature is higher than 55 degree.

Absolute Maximum Ratings at Ta=25℃

Item	Symbol	Absolute Maximum Rating	Unit
DC Forward Current	I_F	700	mA
Peak Forward Current	I_F	1000	mA
Reverse Voltage	V_R	5	V
Power Dissipation	P_D	3000	mW
Electrostatic discharge	ESD	±4500	V
Operation Temperature	Topr	-40~+80	℃
Storage Temperature	Tstg	-40~+100	℃
Lead Soldering Temperature	Tsol	Max.260℃ for 6 seconds Max.
Life test	----	1000H Luminous intensity weaken< 5%(700mA,Ta=65℃); 50,000H Luminous intensity weaken < 20% (700mA,Ta=65℃);

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	V_F	3.0	---	3.6	V	I_f=700mA
Reverse Current	I_R	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	I_F=700mA
Radiant Power	Po	250	---	350	mW	I_F=700mA
Peak Wavelength	λp	---	410	415	nm	I_F=700mA
