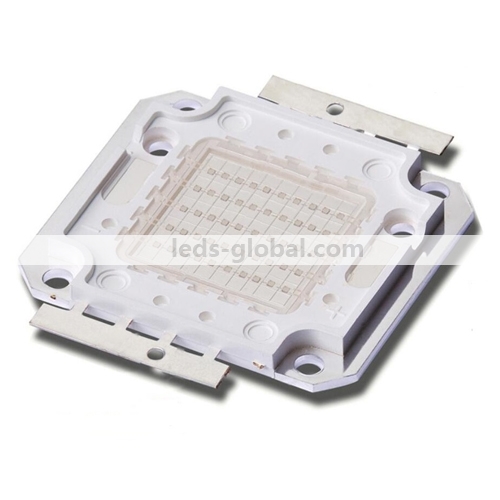

UV 410nm 50W High Power LED Module for Aquarium Light

  • item#: G-50P45EP140UV-415
  • Retail price: 0
  • Wholesale Price: 36.00

  • Start from: 2 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    5-9 0 2%
    10-19 0 3%
    20-49 0 4%
    50-99 0 5%
    100-149 0 6%
    150-199 0 7%
    200--max 0 8%
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      • UV led is widely used in Health Care Equipment, Horiculture, Algea growing and Scientific Instruments. We can offer technology and Custom LED solutions support. If you have any special requirement, please contact us

      Package Dimension(mm):

      415nm UV LED 30W Square Substrate package dimension

      Square Substrate

      415nm UV LED 30W Oval Substrate package dimension

      Oval Substrate



      Key Features:


      • 99.99% gold wire bonding, 1.2mil

      • Red copper Subtrate

      • Chips: 50pcs*  45mil Epileds Chips

      • Connections: 10 in series, 5 in parallel

      Applications: Agricultural lighting, Aquarium, horicultural lighting and other professional or commercial lighting.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      1750

      mA

      Peak Forward Current

      IF

      3000

      mA

      Reverse Voltage

                 VR

      5

      V

      Power Dissipation

                 PD

      50

      W

      Electrostatic discharge

                 ESD

      ±4500

      V

      Operation Temperature

                Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      Lead Soldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000H Luminous intensity weaken< 5%(1750mA,Ta=65℃);        50,000H Luminous intensity weaken < 20% (1750mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      30.0

      ---

      34.0

      V

      If=1750mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

                    VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=1750mA

      Radiant Power

      Po

      16000

      ---

      18000

      mW

      IF=1750mA

      Peak Wavelength

      λp

      ---

      410

      415

      nm

      IF=1750mA
