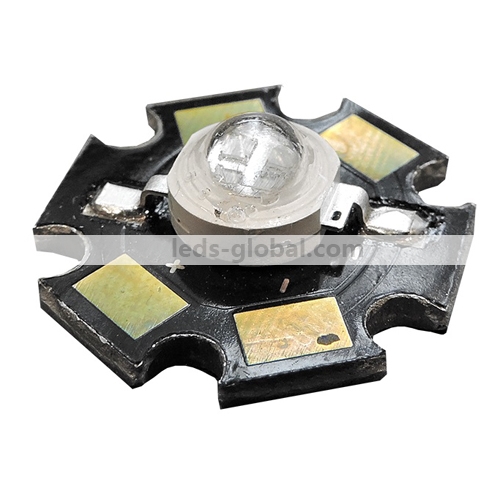

UV 380nm LED 5W on 20mm star PCB

  • item#: G-5P45EP140UV-380A
  • Retail price: 0
  • Wholesale Price: 4.00

  • Start from: 10 Unit(s)
  • This item is:

    Qty.Range(unit) Price(per unit) Discount
    Large Order:
  • 0
  • Quantity:



      Product Details

      • UV led is widely used in Health Care, 3D Printing, UV Photography, Insect Control, Horiculture, Algea growing and Scientific Instruments. We can offer technology and Custom LED solutions support. If you have any special requirement, please contact us. We would be very glad to help you.

      Package Dimension(mm):



      UV 380nm LED 5W Package Dimension

      20mm Star LED PCB



      Key Features:


      • 99.99% gold wire bonding, 1.2mil

      • Red copper Subtrate

      • Epoxy resin lens

      • Epileds, 4pcs *45mil Chips

      • Beam Angle:  60 degree and 120 degrees are available

      • Applications: • UV gluing and marking; • UV curing of inks and varnishes; • Fluorescent minerals and gems inspection.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      700

      mA

      Peak Forward Current

      IF

      1000

      mA

      Reverse Voltage

                 VR

      5

      V

      Power Dissipation

                PD

      5000

      mW

      Electrostatic discharge

                ESD

      ±4500

      V

      Operation Temperature

                Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      Lead Soldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----



      1000 H  Luminous intensity weaken< 5%(700mA,Ta=65℃);         50,000 H Luminous intensity weaken < 20%(700mA,Ta=65℃);



        Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      6.0

      ---

      7.0

      V

      If=700mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=700mA

      Radiant Power

      Po

      800

      ---

      1200

      mW

      IF=700mA

      Peak Wavelength

      λp

      ---

      380

      385

      nm

      IF=700mA
