  • Wholesale UV 380nm 100W High Power LED
  • images/v/201909/a/15679334332.png
  • images/v/201909/a/15679334330.jpg

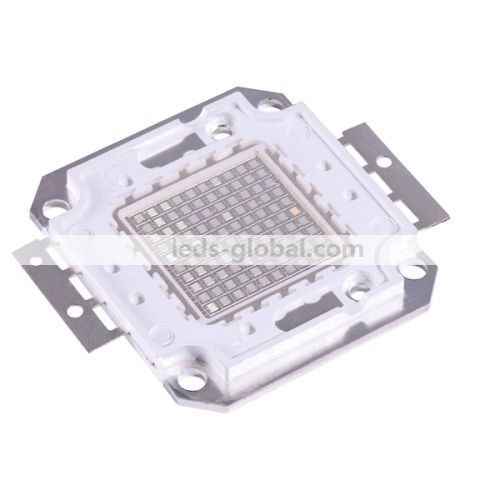

UV 380nm 100W High Power LED

  • item#: G-100P45EP140UV-380
  • Retail price: 0
  • Wholesale Price: 79.00

  • Start from: 1 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    2-4 0 0.5%
    5-9 0 0.8%
    10-19 0 1.2%
    20-49 0 1.5%
    50-99 0 1.8%
    100--max 0 2.3%
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      • UV led is widely used in Health Care, 3D Printing, UV Photography, Insect Control, Horiculture, Algea growing and Scientific Instruments. We can offer technology and Custom LED solutions support. If you have any special requirement, please contact us. We would be very glad to help you.

      Package Dimensions(mm):

      100W 380nm led square substrate package dimensions

      Oval Substrate

      100W 380nm LED Oval substrate package dimensions

      Square Substrate



      Key Features:


      • 99.99% gold wire bonding, 1.2mil

      • Red copper Subtrate

      • Epileds, 100pcs *45mil Chips

      • Chips Layout: 10 in series, 10 in parallel

      • Applications: • UV gluing and marking; • UV curing of inks and varnishes; • Fluorescent minerals and gems inspection.



      Absolute Maximum Ratings at Ta=25


      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

               IF

      3500

      mA

      Peak Forward Current

               IF

      5000

      mA

      Reverse Voltage

               VR

      5

      V

      Power Dissipation

               PD

      100

      W

      Electrostatic discharge

              ESD

      ±4500

      V

      Operation Temperature

              Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      Lead Soldering Temperature

      Tsol

      Max.260℃ for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(3500mA,Ta=65℃);           50,000 H Luminous intensity weaken < 20% (3500mA,Ta=65℃);





      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      30.0

      34.0

      36.0

      V

      IF=3500mA

      Reverse Current

      IR

      ---

      ---

      50

        uA

                        VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

           Deg.

      IF=3500mA

      Radiant Power

      Po

      25000

      ---

      35000

      mW

      IF=3500mA

      Peak Wavelength

      λp

      ---

      380

      385

      nm

      IF=3500mA
