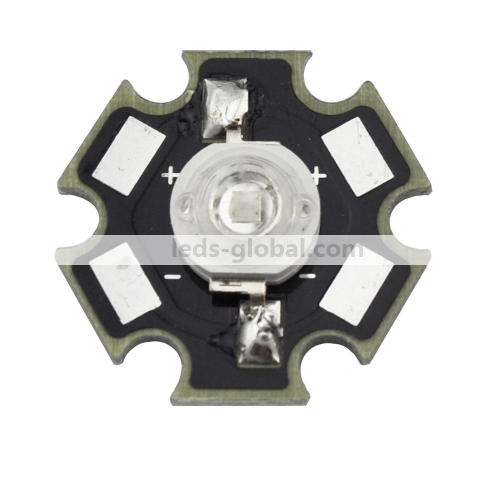

Royal Blue 450nm 1W High Power LED

  • item#: G-1P45B140A1-RB
  • Retail price: 0
  • Wholesale Price: 1.00

  • Start from: 20 Unit(s)
  • This item is:

    Qty.Range(unit) Price(per unit) Discount
    50-99 0 5%
    100-199 0 10%
    200-499 0 15%
    500-999 0 20%
    1000--max 0 30%
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimension(mm):



      Royal Blue 450nm LED 1W LED package dimension

      20mm Star LED PCB

      Key Features:


      • 99.99% gold wire bonding, 12mil

      • Red copper Subtrate

      • Epoxy resin lens

      • Chips: 1pcs*  45mil Bridgelux  Chips

      • Applications: Agricultural lighting, Aquarium, horicultural lighting and other professional or commercial lighting.

      • The LEDs need extra heatsink device for heat disspation.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      350

      mA

      Peak Forward Current

      IF

      500

      mA

      Reverse Voltage

                    VR

      5

      V

      Power Dissipation

                    PD

      1000

      mW

      Electrostatic discharge

                  ESD

      ±4500

      V

      Operation Temperature

                 Topr

                                       -40~+80

                 ℃

      Storage Temperature

      Tstg

                                      -40~+100

                  ℃

      Lead Soldering Temperature

      Tsol

      Max.260℃ for 6 seconds Max.

            Life test

      ----

      1000 H  Luminous intensity weaken< 5%(350mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (350mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25℃



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      3.0

      ---

      3.4

      V

      If=350mA

      Reverse Current

      IR

      ---

      ---

      50

        uA

                      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

           Deg.

      IF=350mA

      Luminous Flux

      Φv

      10

      ---

      15

      lm

      IF=350mA

      Chromaticity

      Λp

      445

      450

      455

      nm

      IF=350mA
