  • Wholesale IR 980nm 5W SMD5050 High Power LED

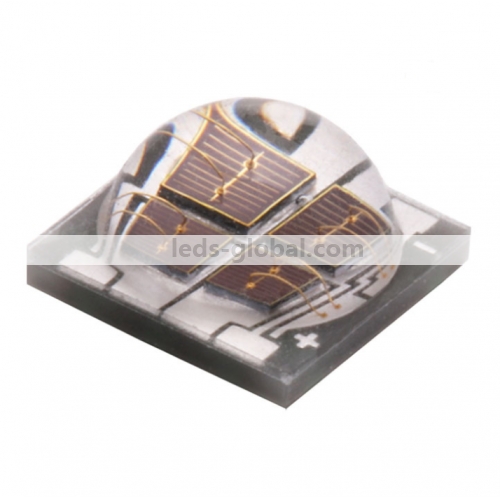

IR 980nm 5W SMD5050 High Power LED

  • item#: G-5P42G5050R140A1-980IR
  • Retail price: 0
  • Wholesale Price: 6.50

  • Start from: 50 Unit(s)
  • This item is:

    Qty.Range(unit) Price(per unit) Discount
    Large Order:
  • 0
  • Quantity:



      Product Details

      The available IR wavelengths from 700nm, 710nm, 720nm, 730nm, 740nm, 750nm, 760nm, 780nm, 790nm, 800nm, 810nm, 830nm, 850nm, 860nm, 880nm, 890nm, 910nm, 940nm, 960nm, 970nm, 980nm, 1050nm. We offer technology and Custom LED solutions support, If you have any special requirements out of store, please contact us.


      Package Dimensions(mm):

      5W IR 800nm LED SMD5050 LED package dimension



      Key Features:


      • 99.99% gold wire bonding, 1.2mil

      • Chips: 4pcs 42mil Epileds

      • Type: Ceramic Substrate (2 in series, 2 in parallel)

      • Beam Angle:  60 degree and 120 degree are available

      • Applications: mainly used for surveilance system, CCTV camera, night and machine vistion, medical and other professional equipment

      • Extra HEATSINK is required for the LEDs.



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      2.2

      2.6

      2.8

      V

      IF=700mA

      Reverse Current

      IR

      ---

      ---

      50

        uA

                   VR=5V

      50% Power Angle

        2θ1/2

      ---

      120

      ---

           Deg.

      IF=700mA

      Raidant Power

                Po

      200

      ---

      300

         mW

      IF=700mA

      Peak Wavelength

      λp

          975

      980

      985

      nm

      IF=700mA
