IR 3W 730nm Hyper Red High Power LED

item#: G-3P42U140A1-FR

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

2.00

Start from: 50 Unit(s)
This item is:

Qty.Range(unit)	Price(per unit)	Discount
26-49	0	5%
50-99	0	10%
100-299	0	15%
300-499	0	20%
500-999	0	25%
1000--max	0	30%
Large Order:

0+ Shipping Cost

Quantity:

Product Details

The available IR wavelengths from 700nm, 710nm, 720nm, 730nm, 740nm, 750nm, 760nm, 780nm, 790nm, 800nm, 810nm, 830nm, 850nm, 860nm, 880nm, 890nm, 910nm, 940nm, 960nm, 970nm, 980nm, 1050nm. We offer technology and Custom LED solutions support, If you have any special requirements out of store, please contact us.

Package Dimensions(mm):

3W Cyan 490nm LED package Dimensions

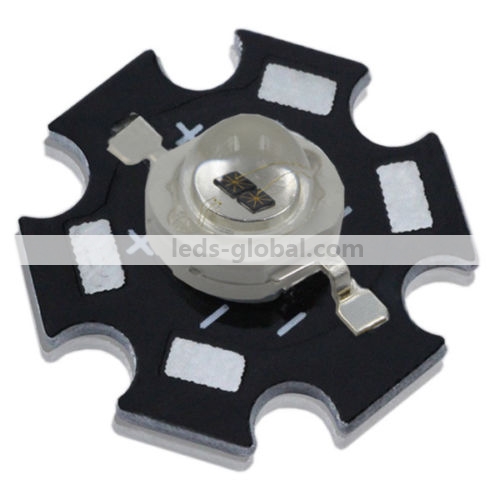

20mm Star LED PCB

Key Features:

• 99.99% gold wire bonding, 1.2mil

• Red copper Subtrate

• Type: Emitter on Star PCB or only the emitter

• Beam Angle: 60 degree and 120 degree are available

• Applications: Agricultural and horicultural lighting

• Extra HEATSINK is required for the LEDs.

Absolute Maximum Ratings at Ta=25℃

Item	Symbol	Absolute Maximum Rating	Unit
DC Forward Current	I_F	700	mA
Peak Forward Current	I_F	1000	mA
Reverse Voltage	V_R	5	V
Power Dissipation	P_D	3000	mW
Electrostatic discharge	ESD	±4500	V
Operation Temperature	Topr	-40~+80	℃
Storage Temperature	Tstg	-40~+100	℃
Lead Soldering Temperature	Tsol	Max.260℃ for 6 seconds Max.
Life test	----	1000H Luminous intensity weaken< 5%(700mA,Ta=65℃); 50,000H Luminous intensity weaken < 20% (700mA,Ta=65℃);

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	V_F	1.8	2.0	2.2	V	I_f=700mA
Reverse Current	I_R	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	I_F=700mA
Radiant Power	Po	250	---	350	mW	I_F=700mA
Peak Wavelength	λp	725	730	735	nm	I_F=700mA
