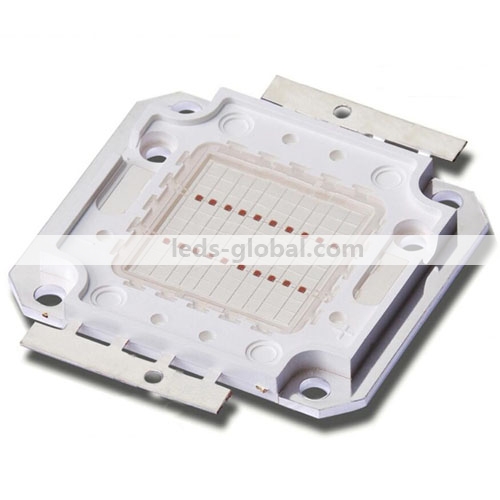

IR 20W hyper Red 730nm High Power LED for plants growing

  • item#: G-20P42U140A1-FR
  • Retail price: 0
  • Wholesale Price: 16.50

  • Start from: 2 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    10-19 0 2%
    20-49 0 3%
    50-99 0 6%
    100-149 0 8%
    150-199 0 10%
    200-249 0 12%
    250-299 0 13%
    300--max 0 15%
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      The available IR wavelengths from 700nm, 710nm, 720nm, 730nm, 740nm, 750nm, 760nm, 780nm, 790nm, 800nm, 810nm, 830nm, 850nm, 860nm, 880nm, 890nm, 910nm, 940nm, 960nm, 970nm, 980nm, 1050nm. We offer technology and Custom LED solutions support, If you have any special requirements out of store, please contact us.


      Package Dimensions(mm):

      20W Far Red 730nm led Square substrate dimensions

      Square Substrate

      20W Far Red 730nm led Oval dimensions

      Oval Substrate



      Key Features:


      • 99.99% gold wire bonding, 1.2mil

      • Red copper Subtrate

      • Substrate Type: Oval and Square

      • Chips: 20pcs* 42mil Chips

      • Chips Connection: 10 in series, 2 in parallel (The chips layout is customizable)

      • Applications: Agricultural and horicultural lighting

      • Extra HEATSINK is required for the LEDs.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      700

      mA

      Peak Forward Current

      IF

      1000

      mA

      Reverse Voltage

                 VR

      5

      V

      Power Dissipation

                 PD

      20

      W

      Electrostatic discharge

                ESD

      ±4500

      V

      Operation Temperature

                Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      Lead Soldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(1400mA,Ta=65℃);        50,000 H Luminous intensity weaken < 20% (1400mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      18.0

      20.0

      22.0

      V

      If=700mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

                   VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=700mA

      Radiant Power

      Po

      2000

      ----

      3000

      mW

      IF=700mA

      Peak Wavelength

      λp

       725

      730

      735

      nm

      IF=700mA
