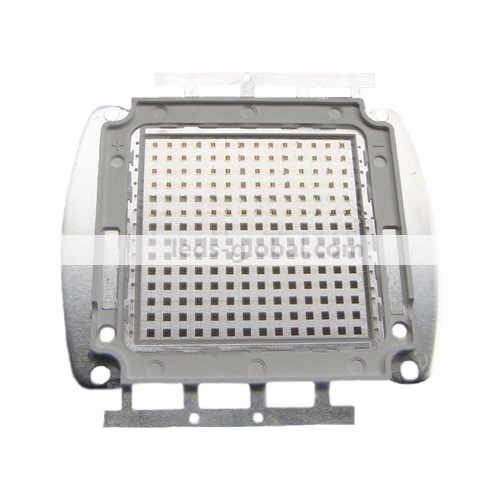

Infrared 940nm 200W High Power LED

  • item#: G-200P42GR140A1-IR
  • Retail price: 0
  • Wholesale Price: 169.00

  • Start from: 1 Unit(s)
  • This item is:

    Qty.Range(unit) Price(per unit) Discount
    Large Order:
  • 0
  • Quantity:



      Product Details

      The available IR wavelengths from 700nm, 710nm, 720nm, 730nm, 740nm, 750nm, 760nm, 780nm, 790nm, 800nm, 810nm, 830nm, 850nm, 860nm, 880nm, 890nm, 910nm, 940nm, 960nm, 970nm, 980nm, 1050nm. We offer technology and Custom LED solutions support, If you have any special requirements out of store, please contact us.


      Package Dimension(mm):

      200W IR 940nm LED package dimensions



      Key Features:


      • 99.99% gold wire bonding, 1.5mil

      • Red copper Subtrate

      • Chips: 200pcs*  42mil Chips

      • Chips Connection: 20 in series, 10 in parallel (the chips layout is customizable)

      • Substrate Type: Oval

      • Applications: mainly used for surveilance system, CCTV camera, night and machine vistion, medical and other professional equipment

      • Extra HEATSINK is required for the LEDs.



      Specifications:



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      26.0

      ---

      30.0

      V

      If=3500mA

      Reverse Current

      IR

      ---

      ---

      50

        uA

                   VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

           Deg.

      IF=3500mA

      Radiant Power

      Po

      15000

      ---

      25000

      mW

      IF=3500mA

      Peak Wavelength

       λp

      935

      940

      945

      nm

      IF=3500mA
