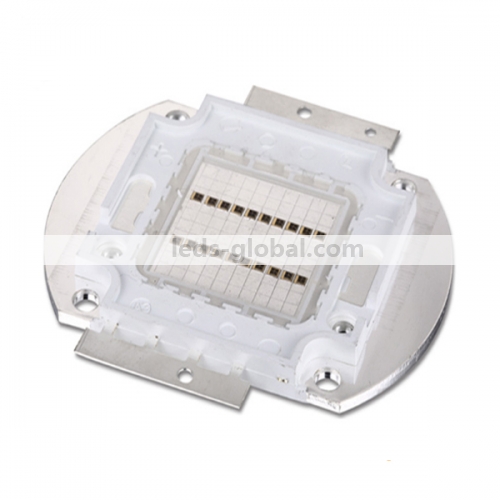

Hyper Red 680nm 20W Infrared High Power LED

  • item#: G-20P42U140A1-IR
  • Retail price: 0
  • Wholesale Price: 26.00

  • Start from: 2 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimension(mm):

      hyper red 680nm led 20W Square substrate package dimension

      Square Substrate

      hyper red 680nm led 50W Oval Round substrate package dimension

      Oval Substrate



      Key Features:


      • 99.99% gold wire bonding, 1.2mil

      • Red Copper Substrate

      • Connections: 10 in series, 2 in parallel (The chips layout is customizable)

      • Substrate Type: Square and Oval available

      • Applications: horicultural lighting, chemical equipment, Camera Filters and Photographic equipment.

      • Extra Heatsink is required for the LED.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      700

      mA

      Peak Forward Current

      IF

      1000

      mA

      Reverse Voltage

      VR

      5

      V

      Power Dissipation

      PD

      20

      W

      Electrostatic discharge

      ESD

      ±4500

      V

      Operation Temperature

      Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      Lead Soldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(700mA,Ta=65℃);      50,000 H Luminous intensity weaken < 20% (700mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      18.0

      ---

      21.0

      V

      If=700mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=700mA

      Radiant Power

      Po

      600

      ---

      800

      mW

      IF=700mA

      Peak Wavelength

      λp

      675

      680

      685

      nm

      IF=700mA
