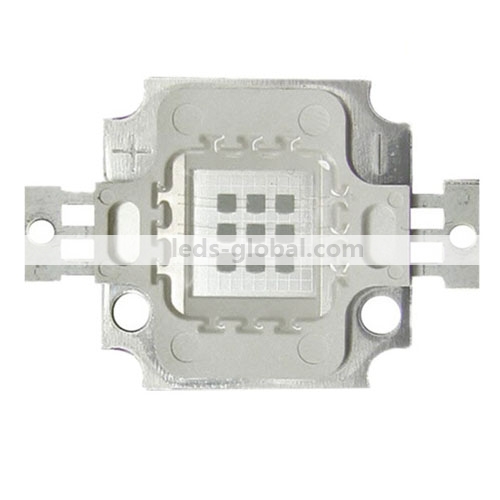

Cyan 495nm 10W High Power LED for Plant Gowing and Aquarium Light

item#: G-P10V140B1-G

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

7.50

Start from: 5 Unit(s)
This item is:

Please Choose:

Shape Type

Qty.Range(unit)	Price(per unit)	Discount
20-49	0	2%
50-99	0	6%
100-149	0	10%
150-199	0	12%
200-249	0	14%
250-299	0	17%
300--max	0	20%
* Discounts may vary based on options above
Large Order:

0+ Shipping Cost

Quantity:

Product Details

Package Dimension(mm):

10W Cyan 495nm led Square substrate package dimension

Square Substrate

10W Cyan 495nm led Round substrate package dimension

Round Substrate

Key Features:

• 99.99% gold wire bonding, 12mil

• Red copper Subtrate

• Chips: 9pcs* 45mil Epileds Chips (3 in series, 3 in parallel)

• Substrate Type: Round and Square

• Applications: Agricultural lighting, horicultural lighting, chemical research and other professional lighting.

• Extra HEATSINK is required for the LEDs.

Absolute Maximum Ratings at Ta=25℃

Item	Symbol	Absolute Maximum Rating	Unit
DC Forward Current	I_F	1050	mA
Peak Forward Current	I_F	1200	mA
Reverse Voltage	V_R	5	V
Power Dissipation	P_D	10	W
Electrostatic discharge	ESD	±4500	V
Operation Temperature	Topr	-40~+80	℃
Storage Temperature	Tstg	-40~+100	℃
Lead Soldering Temperature	Tsol	Max.260℃ for 6 seconds Max.
Life test	----	1000 H Luminous intensity weaken< 5%(1050mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (1050mA,Ta=65℃);

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	V_F	9.0	---	10.0	V	I_f=1050mA
Reverse Current	I_R	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	I_F=1050mA
Luminous Flux	Φv	300	---	400	lm	I_F=1050mA
Chromaticity	Λp	485	490	495	nm	I_F=1050mA
