  • Wholesale Amber 30W 590nm High Power LED
  • images/v/201909/b/15692170381.jpg
  • images/v/201909/b/15692170380.jpg

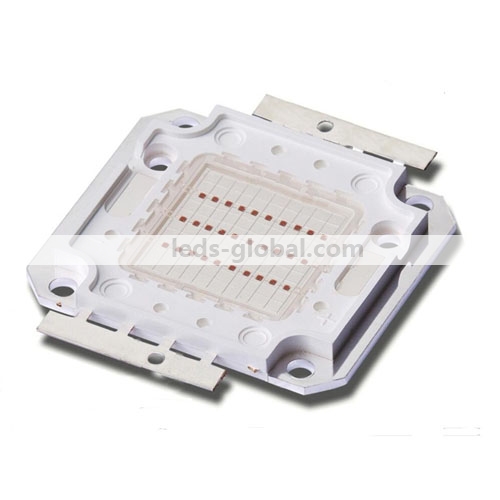

Amber 30W 590nm High Power LED

  • item#: G-30P42Y140A1-A
  • Retail price: 0

    • Wholesale Price: 23.00

  • Start from: 2 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimension(mm):

      30W Amber 590nm LED Square substrate dimension

      Square Substrate

      30W Amber 590nm LED Oval substrate dimension

      Oval Substrate



      Key Features:


      • 99.99% gold wire bonding, 1.2mil

      • Red copper Substrate

      • Chips: 30pcs 42mil Epileds

      • Chips Connections: 10 in series, 3 in parallel (The chips layout is customizable)

      • Substrate Type: Oval and Square

      • Applications: horicultural and algea lighting

      • Extra Heatsink is required for the LED.



      Absolute Maximum Ratings at Ta=25℃



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      1050

      mA

      Peak Forward Current

      IF

      1200

      mA

      Reverse Voltage

                    VR

      5

      V

      Power Dissipation

                    PD

      30

      W

      Electrostatic discharge

                  ESD

      ±4500

      V

      Operation Temperature

                 Topr

                                       -40~+80

                 ℃

      Storage Temperature

      Tstg

                                      -40~+100

                  ℃

        Lead Soldering Temperature

      Tsol

      Max.260℃ for 6 seconds Max.

            Life test

      ----

      1000 H  Luminous intensity weaken< 5%(1050mA,Ta=65℃);       50,000 H Luminous intensity weaken < 20% (1050mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25℃



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      20.0

      ---

      22.0

      V

      If=1050mA

      Reverse Current

      IR

      ---

      ---

      50

        uA

                      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

           Deg.

      IF=1050mA

      Luminous Flux

      Φ

      		      1200

      ---

      		     1500

      lm

      IF=1050mA

      Peak Wavelength

      λp

      ---

      590

      595

      nm

      IF=1050mA
