  • Wholesale 5W Yellow 600nm High Power LED on star PCB
  • images/v/201909/b/15692208201.jpg
  • images/v/201909/b/15692208210.jpg

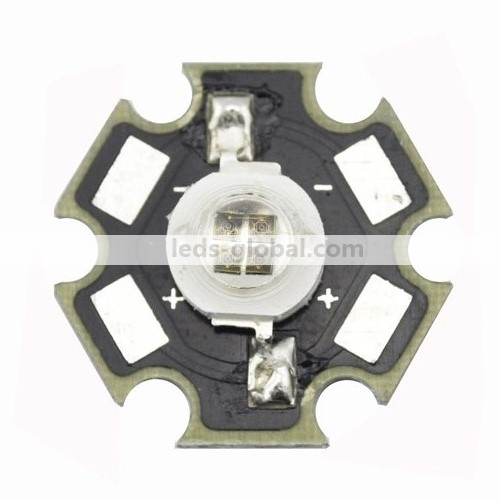

5W Yellow 600nm High Power LED on star PCB

  • item#: G-5P42Y140A1-O1
  • Retail price: 0
  • Wholesale Price: 3.00

  • Start from: 50 Unit(s)
  • This item is:

    Qty.Range(unit) Price(per unit) Discount
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimension(mm):

      Orange 600nm 5W LED package dimensions

      20mm Star LED PCB



      Key Features:


      • 99.99% gold wire bonding, 1.2mil

      • Red copper Subtrate

      • Epoxy resin lens

      • Chips: 4pcs 42mil Epileds (2 in series, 2 in parallel)

      • Beam Angle:  60 degree and 120 degree are available

      • Applications: horicultural and algea lighting

      • Extra Heatsink is required for the LED.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      700

      mA

      Peak Forward Current

      IF

      1000

      mA

      Reverse Voltage

                    VR

      5

      V

      Power Dissipation

                    PD

      5000

      mW

      Electrostatic discharge

                  ESD

      ±4500

      V

      Operation Temperature

                 Topr

                                       -40~+80

                 ℃

      Storage Temperature

      Tstg

                                      -40~+100

                  ℃

      Lead Soldering Temperature

      Tsol

      Max.260℃ for 6 seconds Max.

            Life test

      ----

      1000 H  Luminous intensity weaken< 5%(700mA,Ta=65℃);        50,000 H Luminous intensity weaken < 20% (700mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25℃



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      4.0

      ---

      4.5

      V

      If=700mA

      Reverse Current

      IR

      ---

      ---

      50

           uA

                      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

           Deg.

      IF=700mA

      Luminous Flux

                Φ

      150

      ---

      200

      lm

      IF=700mA

      Peak Wavelength

       λp

           600

      605

      610

      nm

      IF=700mA
