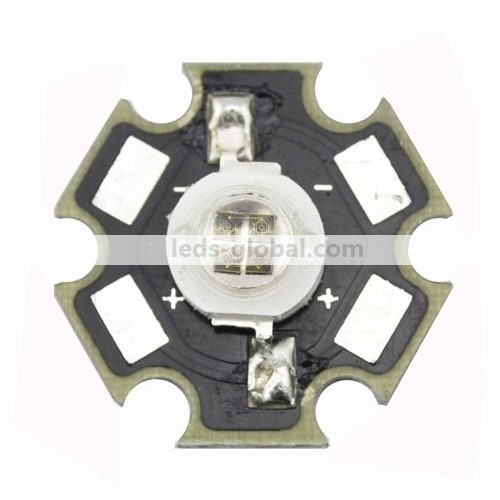

5W Hyper Red 680nm High Power LED on 20mm star PCB

item#: G-5P42U140A1-IR

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

6.00

Start from: 10 Unit(s)
This item is:

Qty.Range(unit)	Price(per unit)	Discount
Large Order:

0+ Shipping Cost

Quantity:

Product Details

Package Dimensions(mm):

hyper red 680nm 3W LED package dimension

20mm Star LED PCB

Key Features:

• 99.99% gold wire bonding, 1.2mil

• Red copper Substrate

• Epoxy resin lens

• Beam Angle: 60 degree and 120 degree are available

• Applications: horicultural lighting, chemical equipment, Camera Filters and Photographic equipment.

• Extra Heatsink is required for the LED.

Absolute Maximum Ratings at Ta=25℃

Item	Symbol	Absolute Maximum Rating	Unit
DC Forward Current	I_F	700	mA
Peak Forward Current	I_F	1000	mA
Reverse Voltage	V_R	5	V
Power Dissipation	P_D	5000	mW
Electrostatic discharge	ESD	±4500	V
Operation Temperature	Topr	-40~+80	℃
Storage Temperature	Tstg	-40~+100	℃
Lead Soldering Temperature	Tsol	Max.260℃ for 6 seconds Max.
Life test	----	1000 H Luminous intensity weaken< 5%(700mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (700mA,Ta=65℃);

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	V_F	2.6	---	4.2	V	I_f=700mA
Reverse Current	I_R	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	I_F=700mA
Radiant Power	Po	100	---	150	mW	I_F=700mA
Peak Wavelength	λp	675	680	685	nm	I_F=700mA
