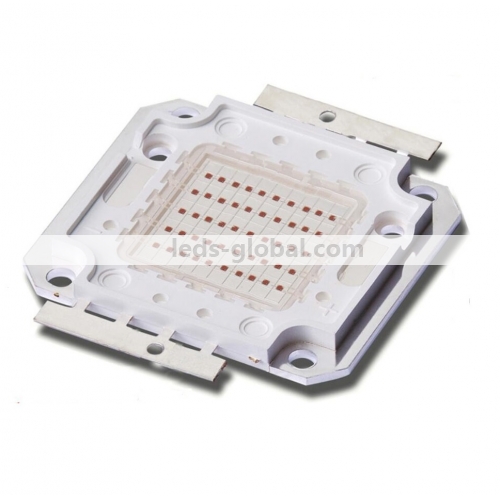

50W Amber High Power LED for Plant Growing

item#: G-50P42Y140A1-A

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

32.00

Start from: 2 Unit(s)
This item is:

Please Choose:

Shape Type

Qty.Range(unit)	Price(per unit)	Discount
* Discounts may vary based on options above
Large Order:

0+ Shipping Cost

Quantity:

Product Details

Package Dimension(mm):

50W Amber 590nm LED Square substrate dimension

Square Substrate

50W Amber 590nm LED Oval substrate dimension

Oval Substrate

Key Features:

• 99.99% gold wire bonding, 1.2mil

• Red copper Substrate

• Chips: 50pcs 42mil Epileds (10 in series, 5 in parallel)

• Substrate Type: Oval and Square

• Applications: horicultural and algea lighting

• Extra Heatsink is required for the LED.

Absolute Maximum Ratings at Ta=25℃

Item	Symbol	Absolute Maximum Rating	Unit
DC Forward Current	I_F	1750	mA
Peak Forward Current	I_F	2000	mA
Reverse Voltage	V_R	5	V
Power Dissipation	P_D	50	W
Electrostatic discharge	ESD	±4500	V
Operation Temperature	Topr	-40~+80	℃
Storage Temperature	Tstg	-40~+100	℃
Lead Soldering Temperature	Tsol	Max.260℃ for 6 seconds Max.
Life test	----	1000 H Luminous intensity weaken< 5%(1750mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (1750mA,Ta=65℃);

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	V_F	20.0	---	22.0	V	I_f=1750mA
Reverse Current	I_R	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	I_F=1750mA
Luminous Flux	Φ	2000	---	2500	lm	I_F=1750mA
Peak Wavelength	λp	---	590	595	nm	I_F=1750mA
