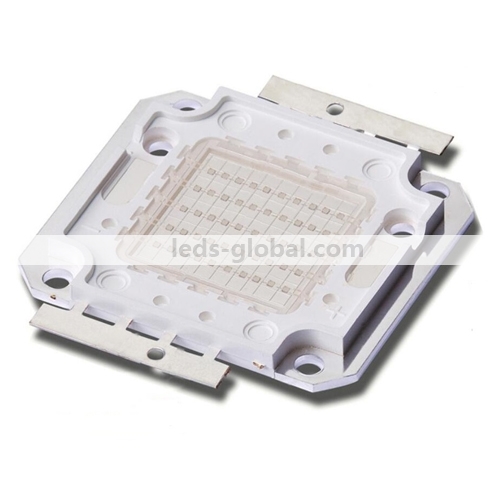

440nm Royal Blue 50W High Power LED

item#: G-50P45V140A1-BV

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

32.00

Start from: 2 Unit(s)
This item is:

Please Choose:

Shape Type

Qty.Range(unit)	Price(per unit)	Discount
5-9	0	1.5%
10-19	0	2%
20-49	0	3%
50-99	0	4%
100-149	0	6%
150-199	0	8%
200--max	0	10%
* Discounts may vary based on options above
Large Order:

0+ Shipping Cost

Quantity:

Product Details

Package Dimension(mm):

Royal Blue 440nm LED 50W LED Square Substrate package dimension

Square Substrate

Royal Blue 440nm LED 50W LED Oval Substrate package dimension

Oval Substrate

Key Features:

• 99.99% gold wire bonding, 1.2mil

• Red copper Subtrate

• Chips: 50pcs* 45mil Epileds Chips

• Connections: 10 in series, 5 in parallel.

• Applications: Agricultural lighting, horicultural lighting and other professional or commercial lighting.

Absolute Maximum Ratings at Ta=25℃

Item	Symbol	Absolute Maximum Rating	Unit
DC Forward Current	I_F	1750	mA
Peak Forward Current	I_F	3000	mA
Reverse Voltage	V_R	5	V
Power Dissipation	P_D	50	W
Electrostatic discharge	ESD	±4500	V
Operation Temperature	Topr	-40~+80	℃
Storage Temperature	Tstg	-40~+100	℃
Lead Soldering Temperature	Tsol	Max.260℃ for 6 seconds Max.
Life test	----	1000 H Luminous intensity weaken< 5%(1750mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (1750mA,Ta=65℃);

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	V_F	30.0	---	32.0	V	I_f=1750mA
Reverse Current	I_R	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	I_F=1750mA
Radiant Power	Po	18000	---	22000	mW	I_F=1750mA
Peak Wavelength	λp	435	440	445	nm	I_F=1750mA
