  • Wholesale 30W Red 630nm High Power Grow light led
  • images/v/201803/b/15220704391.jpg
  • images/v/201803/b/15220704390.jpg

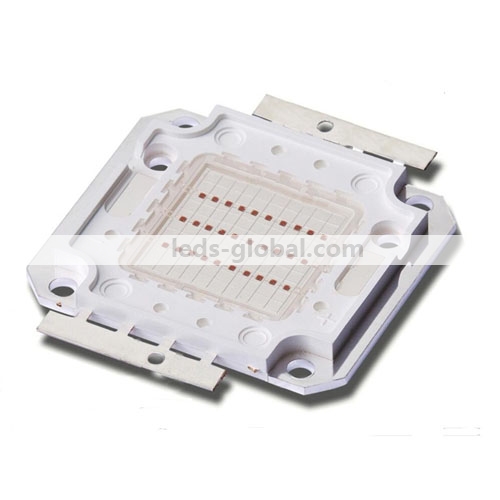

30W Red 630nm High Power Grow light led

  • item#: G-30P42R140A1-R
  • Retail price: 0
  • Wholesale Price: 26.00

  • Start from: 2 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    5-9 0 2%
    10-19 0 4%
    20-49 0 6%
    50-99 0 8%
    100-149 0 10%
    150-199 0 11%
    200--max 0 13%
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimensions(mm):

      50W 395nm led Square substrate dimensions

      Square Substrate

      50W 395nm led Oval dimensions

      Oval Substrate



      Key Features:


      • 99.99% gold wire bonding, 12mil

      • Red copper Subtrate

      • Connections: (10 in series, 3 inparallel){The Chips layout is customizable}

      • Substrate Type: Square and Oval are available

      • Applications: horicultural lighting, chemical equipment, Health care instrument, beauty therapy instrument and other professional lighting

      • Extra Heatsink is required for the LED.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      1050

      mA

      Peak Forward Current

      IF

      1200

      mA

      Reverse Voltage

      VR

      5

      V

      Power Dissipation

      PD

      30

      W

      Electrostatic discharge

      ESD

      ±4500

      V

      Operation Temperature

      Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      Lead Soldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(1050mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (1050mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      18.0

      ---

      22.0

      V

      If=1050mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=1050mA

      Luminous Flux

      Φv

      1200

      ---

      1500

      lm

      IF=1050mA

      Chromaticity

      Λp

      625

      630

      635

      nm

      IF=1050mA
