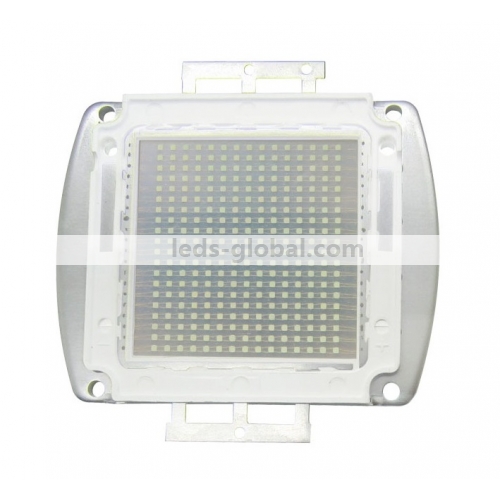

200W UV 380nm High Power LED

item#: G-200P45EP140UV-380

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

145.00

Start from: 1 Unit(s)
This item is:

Qty.Range(unit)	Price(per unit)	Discount
Large Order:

0+ Shipping Cost

Quantity:

Product Details

UV led is widely used in Health Care, 3D Printing, UV Photography, Insect Control, Horiculture, Algea growing and Scientific Instruments. We can offer technology and Custom LED solutions support. If you have any special requirement, please contact us. We would be very glad to help you.

Package Dimension(mm):

200W 380nm LED substrate dimensions

Key Features:

• 99.99% gold wire bonding, 1.5mil

• Red copper Subtrate

• Epileds, 200pcs *45mil Chips

• Chips Layout: 20 in series, 10 in parallel (The layout is customizable)

• Applications: • UV gluing and marking; • UV curing of inks and varnishes; • Fluorescent minerals and gems inspection.

Absolute Maximum Ratings at Ta=25℃

Item

Symbol

Absolute Maximum Rating

Unit

DC Forward Current

I_F

3500

mA

Peak Forward Current

I_F

4000

mA

Reverse Voltage

V_R

5

V

Power Dissipation

P_D

200

W

Electrostatic discharge

ESD

±4500

V

Operation Temperature

Topr

-40~+80

℃

Storage Temperature

Tstg

-40~+100

℃

Lead Soldering Temperature

Tsol

Max.260℃ for 6 seconds Max.

Life test

----

1000 H Luminous intensity weaken< 5%(3500mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (3500mA,Ta=65℃);

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	V_F	60.0	68.0	72.0	V	IF=3500mA
Reverse Current	I_R	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	I_F=3500mA
Radiant Power	Po	50000	---	70000	mW	I_F=3500mA
Peak Wavelength	λp	---	380	385	nm	I_F=3500mA
