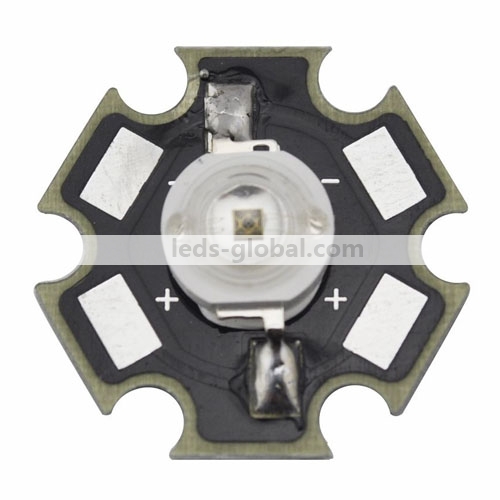

1W Infrared 1050nm High Power LED on star PCB

  • item#: G-1P42HR140A1-1050IR
  • Retail price: 0
  • Wholesale Price: 4.00

  • Start from: 20 Unit(s)
  • This item is:

    Qty.Range(unit) Price(per unit) Discount
    Large Order:
  • 0
  • Quantity:



      Product Details

      The available IR wavelengths from 700nm, 710nm, 720nm, 730nm, 740nm, 750nm, 760nm, 780nm, 790nm, 800nm, 810nm, 830nm, 850nm, 860nm, 880nm, 890nm, 910nm, 940nm, 960nm, 970nm, 980nm, 1050nm. We offer technology and Custom LED solutions support, If you have any special requirements out of store, please contact us.


      Package Dimension(mm):



      hyper red 680nm 1W LED package dimension
      20mm Star LED PCB

      Key Features:


      • 99.99% gold wire bonding, 1.2mil

      • Red copper Subtrate

      • Epoxy resin lens

      • Applications: health care equipment, beauty equipment, laser pump, long distance montoring and other professional equipment.

      • Extra Heatsink is required for the LED.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      350

      mA

      Peak Forward Current

      IF

      500

      mA

      Reverse Voltage

                    VR

      5

      V

      Power Dissipation

                    PD

      1000

      mW

      Electrostatic discharge

                  ESD

      ±4500

      V

      Operation Temperature

                 Topr

                                       -40~+80

                 ℃

      Storage Temperature

      Tstg

                                      -40~+100

                  ℃

      Lead Soldering Temperature

      Tsol

      Max.260℃ for 6 seconds Max.

            Life test

      ----

      1000 H  Luminous intensity weaken< 5%(350mA,Ta=65℃);      50,000 H Luminous intensity weaken < 20% (350mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25℃





      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      1.1

      1.3

      1.4

      V

      If=350mA

      Reverse Current

      IR

      ---

      ---

      50

           uA

                      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

           Deg.

      IF=350mA

      Radiant Power

                Po

      10

      ---

      15

      mW

      IF=350mA

      Peak Wavelength

      λp

          ---

      1050

      ---

      nm

      IF=350mA
