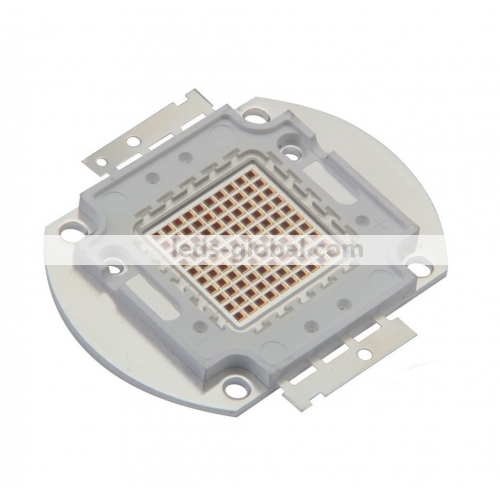

100W IR 1050nm High Power LED

  • item#: G-100P42HR140A1-IR
  • Retail price: 0
  • Wholesale Price: 859.00

  • Start from: 1 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimension(mm):



      100W IR 1050nm led Square substrate package dimension

      Square Substrate

      100W IR 1050nm led Oval substrate package dimension

      Oval Substrate



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      3500

      mA

      Peak Forward Current

      IF

      4000

      mA

      Reverse Voltage

      VR

      5

      V

      Power Dissipation

      PD

      100

      W

      Electrostatic discharge

      ESD

      ±4500

      V

      Operation Temperature

      Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      Lead Soldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(3500mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (3500mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      12

      ---

      15

      V

      If=3500mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=3500mA

      Radiant Power

        Po

      800

      ---

      1000

      mW

      IF=3500mA

      Chromaticity

      Λp

      1035

      1045

      1055

      nm

      IF=3500mA



















      Descriptions:



      Power:  100W

      Type:  Oval and Square Base are both available

      Wavelength: 1050nm +-5nm

      Voltage: 12-15,  Current: 3500mA

      Radiant Power: 800-1000mW

      Addtional  Heatsink equipment is required for the device.
