  • Wholesale 100W 490-495nm Cyan Aquarium LED
  • images/v/201307/a/13734696110.jpg
  • images/v/201803/b/15219020790.jpg

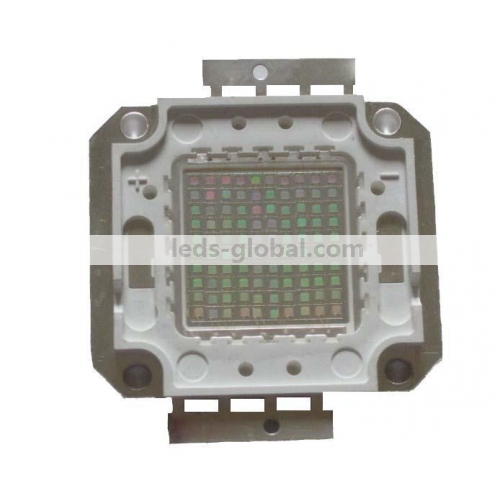

100W 490-495nm Cyan Aquarium LED

  • item#: G-P100V140B1-G
  • Retail price: 0
  • Wholesale Price: 75.00

  • Start from: 1 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    2-4 0 1%
    5-9 0 2%
    10-19 0 3%
    20-49 0 4%
    50-99 0 5%
    100--max 0 6%
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimensions(mm):

      100W Cyan 495nm led Square substrate dimensions

      Square Substrate

      100W Cyan 495nm led Oval dimensions

      Oval Substrate



      Key Features:


      • 99.99% gold wire bonding, 12mil

      • Red copper Subtrate

      • Chips: 100pcs*  45mil Epileds Chips, 10 in series, 10 in parallel

      • Substrate Type: Oval and Square

      • Applications: Agricultural lighting, horicultural lighting, chemical research and other professional lighting.

      • Extra HEATSINK is required for the LEDs.



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      3500

      mA

      Peak Forward Current

      IF

      4000

      mA

      Reverse Voltage

      VR

      5

      V

      Power Dissipation

      PD

      100

      W

      Electrostatic discharge

      ESD

      ±4500

      V

      Operation Temperature

      Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      LeadSoldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(3500mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (3500mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      30.0

      ---

      34.0

      V

      If=3500mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=3500mA

      Luminous Flux

      Φv

      3000

      ---

      4000

      lm

      IF=3500mA

      Chromaticity

      Λp

      490

      495

      500

      nm

      IF=3500mA
