  • Wholesale Royal Blue 450-455nm 3W Plant Grow LED Emitter on Star PCB

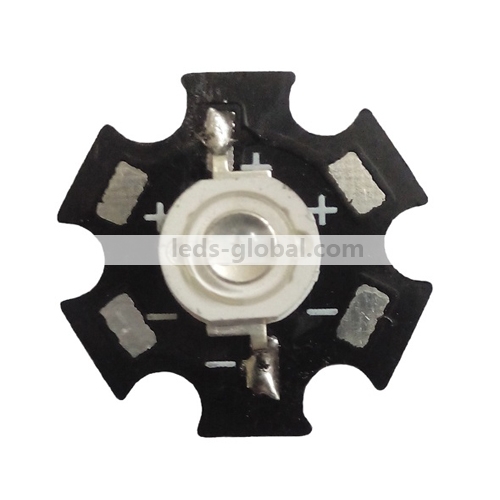

Royal Blue 450-455nm 3W Plant Grow LED Emitter on Star PCB

  • item#: G-P3V140A1-RB
  • Retail price: 0
  • Wholesale Price: 2.00

  • Start from: 20 Unit(s)
  • This item is:

    Qty.Range(unit) Price(per unit) Discount
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimension(mm):



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      700

      mA

      Peak Forward Current

      IF

      1000

      mA

      Reverse Voltage

                    VR

      5

      V

      Power Dissipation

                    PD

      3000

      mW

      Electrostatic discharge

                  ESD

      ±4500

      V

      Operation Temperature

                 Topr

                                       -40~+80

                 ℃

      Storage Temperature

      Tstg

                                      -40~+100

                  ℃

      LeadSoldering Temperature

      Tsol

      Max.260℃ for 6 seconds Max.

            Life test

      ----

      1000 H  Luminous intensity weaken< 5%(700mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (700mA,Ta=65℃);

         Electrical Optical Characteristics at Ta=25

      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      3.0

      ---

      3.6

      V

      If=700mA

      Reverse Current

      IR

      ---

      ---

      50

        uA

                      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

           Deg.

      IF=700mA

      Radiant Power

      φ

      30

      ---

      40

      lm

      IF=700mA

      Chromaticity

      Λp

      450

      455

      ---

      nm

      IF=700mA





      Description:

      Power:  3 W

      Type: Emitter on Star PCB

      Wavelength: 450nm +-5nm

      Beam Angle: 140deg.

      Voltage: 3.0-3.6V     Current: 700mA

      Luminous Flux: 30-40lm

      Additional Heat-sink equipment is recommended when operation temperature is higher than 55 degrees

      Extra additional heat-sink equipment is a MUST for this Led emitter.
