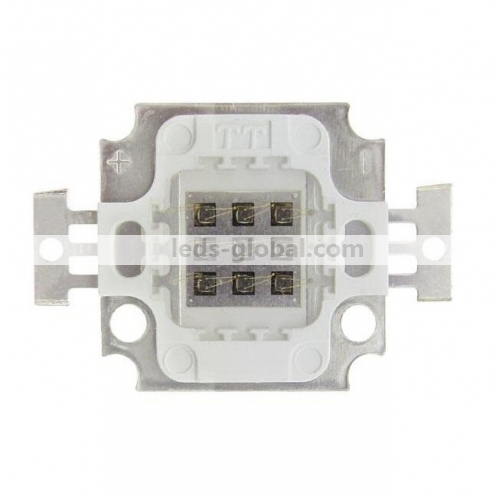

IR 10W 1050nm Infrared High Power LED Module

  • item#: G-P10R140A1-R8
  • Retail price: 0
  • Wholesale Price: 108.00

  • Start from: 2 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      Round Base Dimensions:

      10W Round led package dimensions





      Square Base Dimensions:



      10W Square led package dimensions



      Absolute Maximum Ratings at Ta=25

      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forwar Curren dt

      IF

      1050

      mA

      Peak Forward Current

      IF

      1200

      mA

      Reverse Voltage

      VR

      5

      V

      Power Dissipation

      PD

      10

      W

      Electrostatic discharge

      ESD

      ±4500

      V

      Operation Temperature

      Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      LeadSoldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(1050mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (1050mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25

      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      3.6

      ---

      4.5

      V

      If=1050mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=1050mA

      Radiant Power

      Po

      70

      ---

      80

      mW

      IF=1050mA

      Chromaticity

      Λp

      1035

      1045

      1055

      nm

      IF=1050mA



















      Descriptions:



      Power:  10W

      Type: Round and Square base both are available.

      Wavelength: 1050nm +-5nm

      Beam Angle: 140deg.

      Voltage: 3.6-4.5 V     Current: 1050mA

      Radiant Power: 70-80mW

      Additional Heat-sink equipment is recommended when operation temperature is higher than 55 degrees. Extra additional heat-sink equipment is a MUST for this Led emitter.
