  • Wholesale Infared 20W 940nm High Power LED
  • images/v/201803/b/15221256951.jpg
  • images/v/201803/b/15221256960.jpg

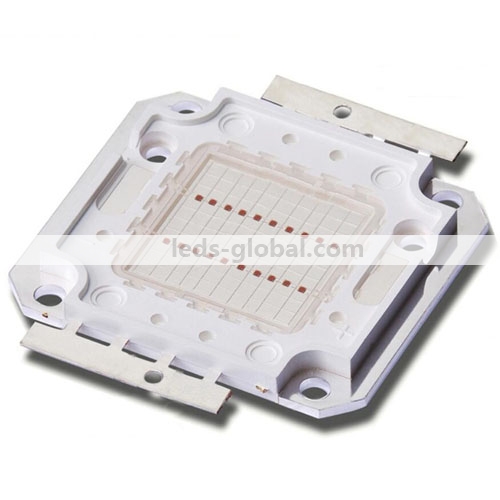

Infared 20W 940nm High Power LED

  • item#: G-P20R140A1-R5
  • Retail price: 0
  • Wholesale Price: 25.00

  • Start from: 2 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    10-19 0 2%
    20-49 0 6%
    50-99 0 9%
    100-149 0 12%
    150-199 0 14%
    200-249 0 16%
    250-299 0 18%
    300--max 0 20%
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      1400

      mA

      Peak Forward Current

      IF

      1600

      mA

      Reverse Voltage

      VR

      5

      V

      Power Dissipation

      PD

      20

      W

      Electrostatic discharge

      ESD

      ±4500

      V

      Operation Temperature

      Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      LeadSoldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(1400mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (1400mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25

      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      6.5

      ---

      7.5

      V

      If=1400mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      120

      ---

          Deg.

      IF=1400mA

      Radiant Power

      Po

      520

      560

      600

      mW

      IF=1400mA

      Chromaticity

      Λp

         ---

      940

      ---

      nm

      IF=1400mA















      20W Red

      Descriptions:

      Power:  20W

      Type:  Oval, Rectangular and Square Base are available.

      Wavelength: 940nm +-5nm

      Beam Angle: 120deg.

      Voltage: 6.5-7.5V     Current: 1400mA

      Radiant Power: 500-600mW

      Operation Temperature: -20-80 degrees

      Storage Temperature: -20-100 degrees

      Additional Heat-sink equipment is recommended when operation temperature is higher than 55.
