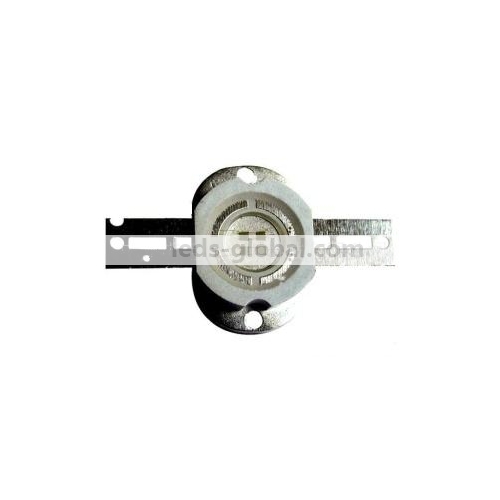

Cyan 5W 500nm coral grow high power led

  • item#: G-P5V140B1-GT
  • Retail price: 0
  • Wholesale Price: 4.00

  • Start from: 10 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimensions(mm):



      5W size


      Absolute Maximum Ratings at Ta=25

      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      700

      mA

      Peak Forward Current

      IF

      1000

      mA

      Reverse Voltage

      VR

      5

      V

      Power Dissipation

      PD

      5000

      mW

      Electrostatic discharge

      ESD

      ±4500

      V

      Operation Temperature

      Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      LeadSoldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(700mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (700mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25

      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      6.0

      ---

      7.0

      V

      If=700mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=700mA

      Luminous Flux

      Φv

      100

      ---

      120

      lm

      IF=700mA

      Chromaticity

      Λp

      495

      500

      505

      nm

      IF=700mA















        Description:

        Power:  5 W

        Type: Round Base

        Wavelength: 500nm +-5nm

        Beam Angle: 140deg.

        Voltage: 6.0-7.0V Current: 700mA

        Luminous Flux: 100-120lm

        Additional Heat-sink equipment is recommended when operation temperature is higher than 55 degrees.
