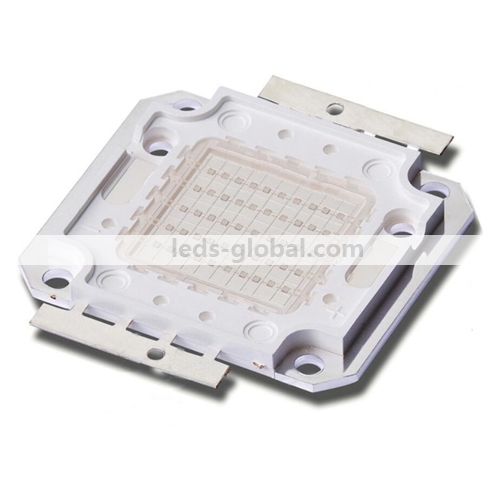

Cyan 495nm 50W High Power LED for Aquarium light

  • item#: G-P50V140B1-G
  • Retail price: 0
  • Wholesale Price: 39.00

  • Start from: 2 Unit(s)
  • This item is:

    Please Choose:


    Qty.Range(unit) Price(per unit) Discount
    5-9 0 1.5%
    10-19 0 2%
    20-49 0 3%
    50-99 0 4%
    100-149 0 6%
    150-199 0 8%
    200--max 0 10%
    * Discounts may vary based on options above
    Large Order:
  • 0
  • Quantity:



      Product Details


      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      1750

      mA

      Peak Forward Current

      IF

      3000

      mA

      Reverse Voltage

      VR

      5

      V

      Power Dissipation

      PD

      50

      W

      Electrostatic discharge

      ESD

      ±4500

      V

      Operation Temperature

      Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      LeadSoldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(1750mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (1750mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      30

          ----

      36

      V

      If=1750mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=1750mA

      Luminous Flux

       Φv

      1200

      ---

      1500

      lm

      IF=1750mA

      Chromaticity

      Λp

      490

      495

      500

      nm

      IF=1750mA

















      Descriptions:



      Power:  50W

      Type:  Square Base

      Wavelength: 495nm +-5nm

      Beam Angle: 140deg.

      Voltage: 34-38V     Current: 1750mA

      Luminous Flux: 1200-1500lm

      Operation Temperature: -20-80 degrees

      Storage Temperature: -20-100 degrees

      Additional Heat-sink equipment is recommended when operation temperature is higher than 55 degrees.
