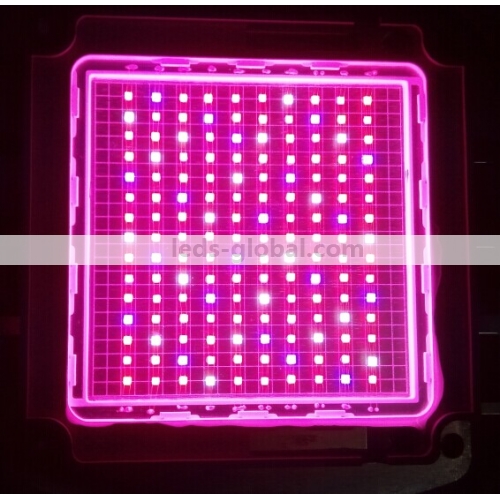

The high power LED can be combined with different wavelengths/colors to build the multi-chips LED array for aquarium and plant growing. The available wavelength ranged from 365nm, 380nm...810nm, 940nm can be used to combine and build the LED array for your application. We accept your custom order, and also we will be very happy to help you and get what you are looking for.
Package Dimension(mm):
The available chips for building your custom led device |
||||||
Colors | Wavelength (nm) | Chips Size(mil) | voltage(V) | Current (mA) | Radiant Power(mW) | Chips Brand |
Luminous Flux(lm) | ||||||
UV | 365nm | 45mil | 3.0-3.4V | 350mA | 40-50mW | Epileds |
UV | 390nm | 45mil | 3.0-3.4V | 350mA | 60-70mW | Epileds |
UV | 400nm | 45mil | 3.0-3.4V | 350mA | 100-120mW | Epileds |
UV | 410nm | 45mil | 3.0-3.4V | 350mA | 120-150mW | Epileds |
True Violet | 420nm | 45mil | 3.0-3.4V | 350mA | 150-200mW | Epileds |
Violet | 430nm | 45mil | 3.0-3.4V | 350mA | 200-300mW | Epileds |
Royal Blue | 440nm | 45mil | 3.0-3.4V | 350mA | 300-400mW | Epileds |
Royal Blue | 450nm | 45mil | 3.0-3.4V | 350mA | 15-20lm | Bridgelux/Epileds |
Blue | 460nm | 45mil | 3.0-3.4V | 350mA | 15-20lm | Epileds |
Cool Blue | 470nm | 45mil | 3.0-3.4V | 350mA | 20-30lm | Epileds |
Cyan | 490nm | 45mil | 3.0-3.4V | 350mA | 20-30lm | Epileds |
Turquoise | 500nm | 45mil | 3.0-3.4V | 350mA | 30-40lm | Epileds |
Green | 510nm | 45mil | 3.0-3.4V | 350mA | 30-40lm | Epileds |
Green | 530nm | 45mil | 3.0-3.4V | 350mA | 50-60lm | Epileds |
Green | 540nm | 45mil | 3.0-3.4V | 350mA | 40-50lm | Epileds |
Green | 550nm | 45mil | 3.0-3.4V | 350mA | 40-50lm | Epileds |
Amber | 590nm | 42mil | 1.8-2.0V | 350mA | 40-50lm | Epileds |
Red | 620nm | 42mil | 1.8-2.0V | 350mA | 40-50lm | Epistar/Epileds |
Red | 630nm | 42mil | 1.8-2.0V | 350mA | 40-50lm | Epistar/Epileds |
Red | 640nm | 42mil | 1.8-2.0V | 350mA | 40-50lm | Epistar/Epileds |
Deep Red | 660nm | 42mil | 1.8-2.0V | 350mA | 15-25lm | Epistar/Epileds |
Infrared(IR) | 680nm | 42mil | 1.8-2.0V | 350mA | 20-30mW | Chips from Germany |
Far Red | 730nm | 42mil | 1.8-2.0V | 350mA | 20-30mW | Epileds |
Infrared(IR) | 740nm | 42mil | 1.8-2.0V | 350mA | 20-30mW | Epileds |
Infrared(IR) | 850nm | 42mil | 1.5-1.7V | 350mA | 80-100mW | Epileds |
Infrared(IR) | 940nm | 42mil | 1.3-1.5V | 350mA | 15-20mW | Epileds |
Infrared(IR) | 970nm | 42mil | 1.5-1.7V | 350mA | 60-70mW | ED |
Warm White | 2700-3200K | 45mil | 3.0-3.4V | 350mA | 90-110lm | Bridgelux/Epileds |
Natural White | 4000-5000K | 45mil | 3.0-3.4V | 350mA | 90-110lm | Bridgelux/Epileds |
Cool White | 5000-30000K | 45mil | 3.0-3.4V | 350mA | 90-110lm | Bridgelux/Epileds |
You can use the above listed colors to be combined at a proper ratio to build for your coral reefs growing and plant growing. We accept your custom order, and also we will be very happy to help you and get the right full spectrum leds what you are looking for. Please contact us for more details about your configurations and the device you expect to build. And the custom led price could be discussed
