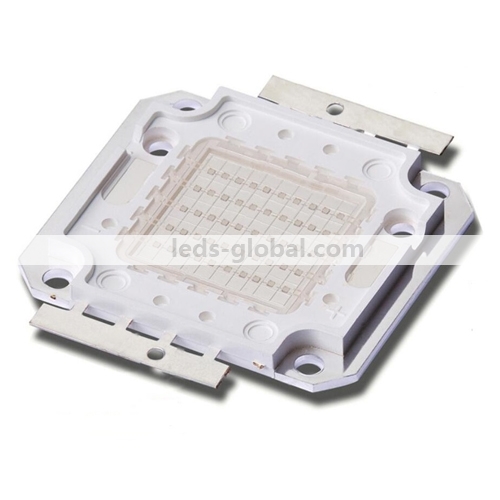

50W Yellow-Green 525--530nm Coral Grow High Power LED

  • item#: G-P50V140A1-YG
  • Retail price: 0
  • Wholesale Price: 42.00

  • Start from: 2 Unit(s)
  • This item is:

    Qty.Range(unit) Price(per unit) Discount
    Large Order:
  • 0
  • Quantity:



      Product Details

      Package Dimension(mm):

      Oval Base dimension

      Oval Base

      Square base dimension

      Square Base



      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      1750

      mA

      Peak Forward Current

      IF

      2000

      mA

      Reverse Voltage

      VR

      5

      V

      Power Dissipation

      PD

      50

      W

      Electrostatic discharge

      ESD

      ±4500

      V

      Operation Temperature

      Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      Lead Soldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(1750mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (1750mA,Ta=65℃);



      Electrical Optical Characteristics at Ta=25



      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      30

      ---

      36

      V

      If=1750mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=1750mA

      Luminous Flux

       Φv

      1200

      ---

      1500

      lm

      IF=1750mA

      Chromaticity

      Λp

      525

      530

      ---

      nm

      IF=1750mA















      Desciptions:



      Power:  50W

      Type:  Oval and Square Base are available

      Wavelength: 530nm +-5nm

      Voltage: 30-36V     Current: 1750mA

      Luminous Flux: 1200-1500lm

      Addtional  Heatsink equipment is required for the device.
