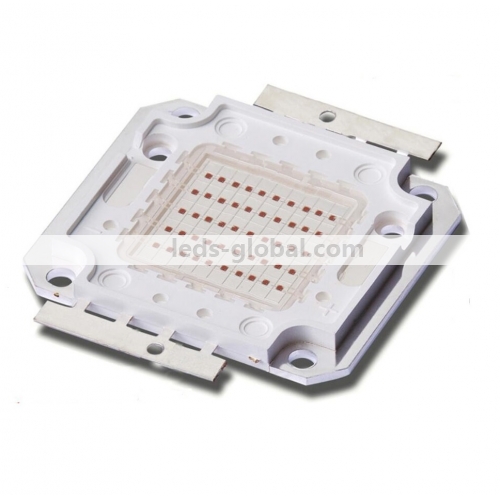

50W IR 680nm High Power LED Module

item#: G-P50V140AB1-R1

Retail price: 0

Wholesale Price:

US$ € CHF CA$ AU$ HK$ £ ￥

560.00

Start from: 1 Unit(s)
This item is:

Please Choose:

Base Type

Qty.Range(unit)	Price(per unit)	Discount
* Discounts may vary based on options above
Large Order:

0+ Shipping Cost

Quantity:

Product Details

Package Dimension(mm):

cob dimensions

Absolute Maximum Ratings at Ta=25℃

Item	Symbol	Absolute Maximum Rating	Unit
DC Forward Current	I_F	1750	mA
Peak Forward Current	I_F	2000	mA
Reverse Voltage	V_R	5	V
Power Dissipation	P_D	50	W
Electrostatic discharge	ESD	±4500	V
Operation Temperature	Topr	-40~+80	℃
Storage Temperature	Tstg	-40~+100	℃
Lead Soldering Temperature	Tsol	Max.260℃ for 6 seconds Max.
Life test	----	1000 H Luminous intensity weaken< 5%(1750mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (1750mA,Ta=65℃);

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Forward Voltage	V_F	18	---	20	V	I_f=1750mA
Reverse Current	I_R	---	---	50	uA	VR=5V
50% Power Angle	2θ1/2	---	140	---	Deg.	I_F=1750mA
Radiant Power	Po	3000	---	4000	mW	I_F=1750mA
Chromaticity	Λp	---	680	685	nm	I_F=1750mA

Desciptions:

Power: 50W

Type: Oval and Square Base are available

Wavelength: 680nm +-5nm

Voltage: 18-20V Current: 1750mA

Radiant Power: 3000-4000mW

Addtional Heatsink equipment is required for the device.
