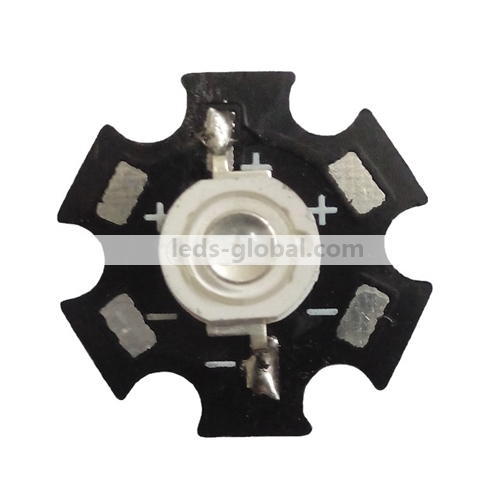

3W Cyan 495nm High Power LED for coral reefs growing on star PCB

  • item#: G-P3V140B1-G
  • Retail price: 0
  • Wholesale Price: 2.00

  • Start from: 20 Unit(s)
  • This item is:

    Qty.Range(unit) Price(per unit) Discount
    50-99 0 5%
    100-299 0 10%
    300-499 0 20%
    500-999 0 30%
    1000--max 0 40%
    Large Order:
  • 0
  • Quantity:



      Product Details

      3W True Cyan 495nm High Power LED for coral grow light on star PCB







      Absolute Maximum Ratings at Ta=25



      Item

      Symbol

      Absolute Maximum Rating

      Unit

      DC Forward Current

      IF

      700

      mA

      Peak Forward Current

      IF

      1000

      mA

      Reverse Voltage

      VR

      5

      V

      Power Dissipation

      PD

      3000

      mW

      Electrostatic discharge

      ESD

      ±4500

      V

      Operation Temperature

      Topr

      -40~+80

      Storage Temperature

      Tstg

      -40~+100

      LeadSoldering Temperature

      Tsol

      Max.260 for 6 seconds Max.

      Life test

      ----

      1000 H  Luminous intensity weaken< 5%(700mA,Ta=65℃); 50,000 H Luminous intensity weaken < 20% (700mA,Ta=65℃);



        Electrical Optical Characteristics at Ta=25

      Parameter

      Symbol

      Min.

      Typ.

      Max.

      Unit

      Test Condition

      Forward Voltage

      VF

      3.0

      ---

      3.6

      V

      If=700mA

      Reverse Current

      IR

      ---

      ---

      50

      uA

      VR=5V

      50% Power Angle

      2θ1/2

      ---

      140

      ---

          Deg.

      IF=700mA

      Luminous Flux

      Φv

      60

      ---

      70

      lm

      IF=700mA

      Chromaticity

      Λp

      490

      495

      500

      nm

      IF=700mA

















      cyan 490nm led.jpg

      cyan 490nm led diode-1.jpg
